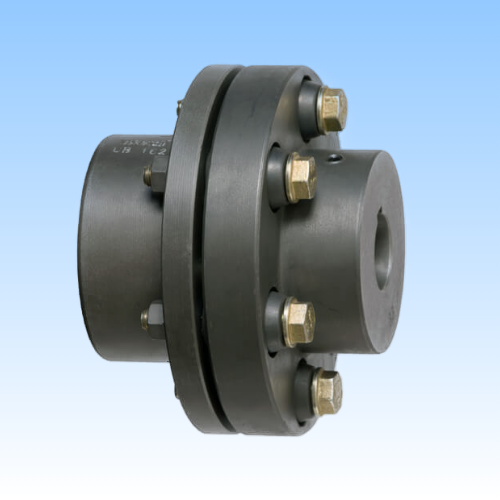

Pin Bush Type Coupling with Curved Bush (UB)

Category Pin Bush & Tyre/Shear Type Couplings

Durable coupling using pin and barrel-type bush for shock absorption and misalignment. Suitable for heavy loads and harsh working conditions.

Features:

Simple mechanism to demand adjustment or maintenance. Inspection and Replacement of Cone Ring is easy and can be quickly fitted without dismantling or moving either of coupled shaft.
Assembling and dismantling is very easy.
By removing the pins, prime mover can be run independently.
After removing the pins, the hub with shaft can be moved upwards Without disturbing the alignment.
Working Temperature up to 70 Degree Centigrade Range up to 4308 Nm torque ratings.
Each coupling is capable of withstanding maximum torque of 3 times of nominal torque.
