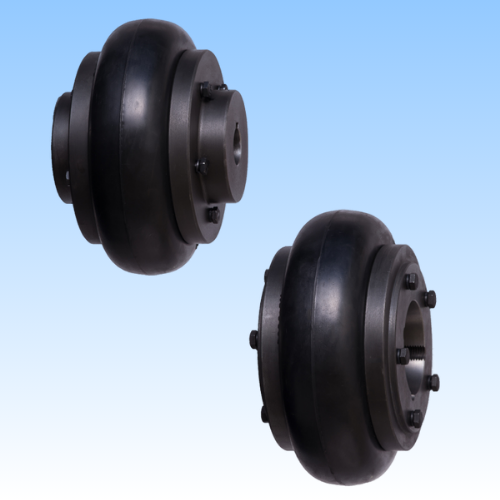

Features

• Highest mis-alignment tolerance: Parallel – Max 6 mm, Angular – Max 4 Degrees, End Float – Max 6 mm
• In case of failure of Tyre, torque transmission is stopped – safeguarding euipments.
• Better protections in impact load and heavy shocks.
• No lubrication required.
• Maximum misalignment: Parallel – 1.10mm to 4.80mm
• Maximum misalignment: End Float – 1.30mm to 6.00mm
• Rated torque range: 21.01Nm – 5481.28Nm
• Torsional Stiffness range: 286 – 79,068 Nm / Radian
• KW Rating at 100 rpm range: 0.22 – 57.40
